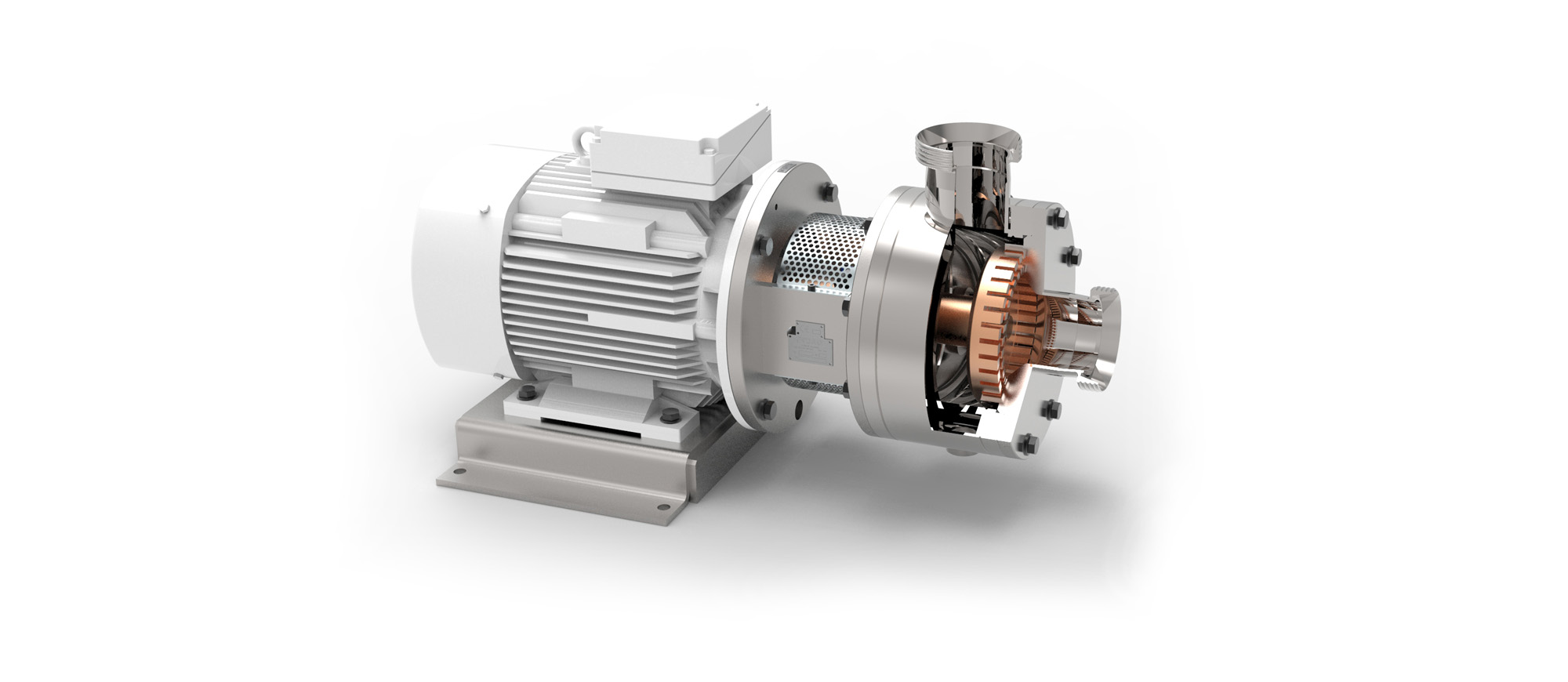

DLM/H
Inline Homogenizer
High shear mixing for emulsifying and dispersing
The INDAG Inline Homogenizer type DLM/H is used for effective emulsifying, dispersing and mixing liquids and solids. A typical application for the INDAG Inline Homogenizer is the disintegration (de-agglomeration) of lumps in pumpable media. For example, in the production of cosmetics, oil, water and emulsifier are combined to form a stable emulsion. Mayonnaise is produced from oil, vinegar solution and egg by a homogenizer type DLM/H. Droplet sizes of less than 1 µm are achieved at rotor peripheral speeds > 20 m/s and very narrow gap dimensions. Another example of the use of the INDAG Inline Homogenizer is the mixing of phosphoric acid or citric acid into vegetable oil for degumming.
Advantages of DLM/H
- Very good self-cleaning during CIP-cleaning
- Efficient introduction of mixing energy
- Modular design of homogenizer
- Hygienic design
- Execution with double jacket and further connections possible
- Various special designs available, e.g. for high pressure or high viscosity.
Technology of DLM/H
The INDAG homogenizer type DLM/H has a rotor and a stator. These are provided with axially arranged mixing/shearing elements. Rotor can be designed to be cooled or heated. The homogenizers are of modular design, four diameters with 2 or 3 mixing stages are available. The DLM/H is offered in compact design (KB) and in bearing block design (LB). In the compact design, the rotor is mounted by the output shaft of the motor. In the bearing block design, the rotor is mounted by its own bearing block. With own bearing block, narrower shear gaps and thus a more intensive shear effect can be realized. Furthermore, this design is also suitable for mixing under high pressure or high temperature. The type of rotor seal is selected to suit each application. For the supply of the double-acting mechanical seal INDAG offers the suitable locking system.
Positioning
Horizontal or vertical position of mixer is possible
Pressure levels
6 bar, 10 bar, 16 bar, 25 bar, 40 bar
Materials
1.4404 (AISI 316 L) or higher quality on request
Seals
Single acting mechanical seal; double acting mechanical seal; even in aseptic execution
Connections
Dairy connections according to DIN 11851, DIN 11864, Tri Clamp, SMS and various others on request
Rotational speed
1,500 rpm to 6,000 rpm
Capacities
50 l/h to 120,000 l/h
Temperatures
0 °C to 250 °C
Viskosities
1 mPas to 500,000 mPas
Mixer sizes and capacities of DLM/H
| Type DLM/H | Unit | 2 | 3 | 4 | 5 |
| capacity* | l/h | 50-6.000 | 500-30.000 | 2.000-55.000 | 5.000-120.000 |
| connection | DN | 25-50 | 50-80 | 80-100 | 100-125 |
| optional | ASME | 1-2” | 2”-3” | 3”-4” | 4”-5” |
| power* | kW | 2,2-4,0 | 4-11 | 11-22 | 37,5-75 |
| rotational speed* | 1/min | 1.000-6.000 | 1.000-5.000 | 1.000-3.000 | 1.000-3.000 |
| mixing stages compact version | 2 | DLM/H-202 KB | DLM/H-302 KB | DLM/H-402 KB | DLM/H-502 KB |
| mixing stages bearing block version | 3 | DLM/H-303 LB | DLM/H-403 LB | DLM/H-503 LB |
Dimension drawing of DLM/H with bearing block (LB)
| Type | Unit | A | B | H* | L* |
| DLM/H-202 LB | mm | 101 | 155 | 250 | 1200 |
| DLM/H-303 LB | mm | 147 | 175 | 312 | 1500 |
| DLM/H-403 LB | mm | 157 | 205 | 385 | 1600 |
| DLM/H-503 LB | mm | 193 | 244 | 460 | 1800 |
Dimension drawing of DLM/H compact version (KB)
| Type | Unit | A | B | H* | L* |
| DLM/H-202 KB | mm | 101 | 155 | 170 | 580 |
| DLM/H-302 KB | mm | 147 | 175 | 190 | 755 |
| DLM/H-402 KB | mm | 157 | 205 | 190 | 822 |
| DLM/H-502 KB | mm | 193 | 244 | 238 | 990 |
